How a Tiny Room in Phoenix was Converted into a Wine Cellar

Many people want to own a wine cellar. Having a residential wine room can make your home look more luxurious and elegant. But, the usual concern is where to have it built. Not everybody has a large room, like a basement or garage that is spacious enough to be turned into an ideal wine cellar. If there is a spare area available, it’s usually small, like a closet or pantry. If you’re one of those who has a limited area for the construction of a cellar, don’t fret! We, at Custom Wine Cellars Phoenix, can build beautiful wine storage structures even in tiny spaces, just like in our most recent project in Phoenix, Arizona.

FREE 3D wine cellar design here!

Get your own wine cellar design for free! Click here!

Phoenix Project: Custom Wine Cellar Built in a Tiny Room

Click for a bigger photo!

Click on the photo for a larger version of the image!

We are very proud of our recently completed project for a client in Phoenix, Arizona. We were able to build a gorgeous residential custom wine cellar in a tiny room in the client’s house.

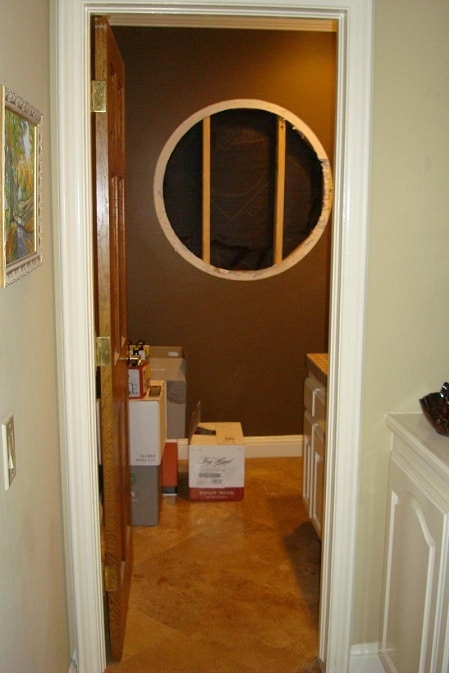

The small room was originally an unused powder room. For many wine cellar companies, this space was too small for a cellar to be constructed in, but our team of contractors took this challenge head-on. Our team has gathered many experiences in building storage facilities in areas just as small as, or even smaller than, this powder room.

We’ve always been successful at building cellars in small areas and maximizing space in them. Our clients are often pleasantly surprised at how many bottles they can store in the small cellars we build – it’s usually more than they thought possible!

For this particular project, we were able to create a storage facility that could house up to 471 wine bottles.

in the client’s powder room that we converted into a wine cellar.

Planning and Designing the Tiny Room into a Custom Wine Cellar

Larger photo here!

Click on image to get a larger view of the photo!

In all the projects we are hired to complete, we go through a series of processes to make sure that the client’s requirements are met. The first process, which is most vital, is the planning phase.

We met with the client in Phoenix and our team and the client discussed details of the construction, including the cost of the project, the type of materials to be used, the style she preferred, the kinds of racks to be installed, and the choice of cooling system to be mounted. We presented the client with options for each of these elements so that she could choose properly.

FREE wine cellar design here!

Get your own wine cellar designed by an expert!

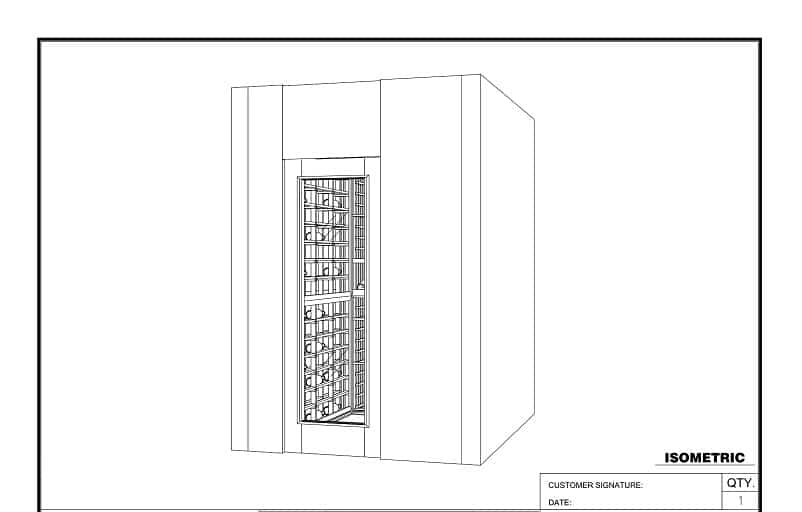

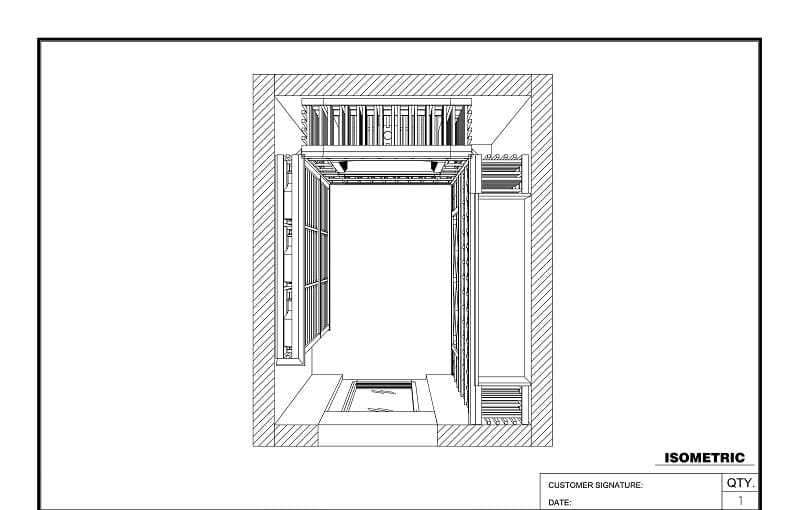

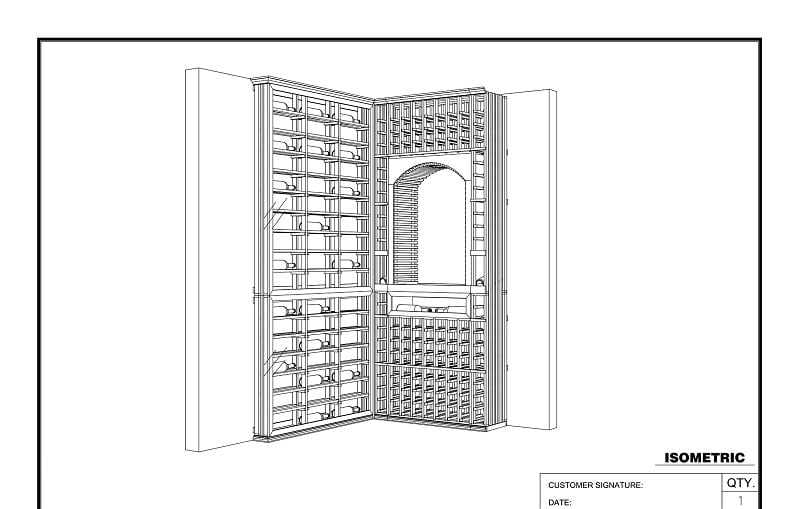

After a thorough consultation, our designers created 3D drawings of the proposed wine cellar. Once the client approved the design, the preparation for the wine cellar construction began.

Click on photo to get your own design for FREE!

3D wine cellar design.

Preparing the Tiny Room for the Construction of a Wine Cellar

Click for a bigger photo!

Click on the photo for a larger version of the image!

To effectively create a fully functional, climate-controlled storage room, our team had to prepare the walls of the area. The small powder room had an external wall with a window, plumbing fixtures, and cabinetry. Our wine cellar construction experts had to remove all of these features. Then, the walls of the tiny room were prepared with the appropriate vapor barrier, and the right insulation, and then refinished to ensure that the structure was ready for the installation of wine racks and a refrigeration system.

An Assortment of Wine Racking Systems to Maximize Space

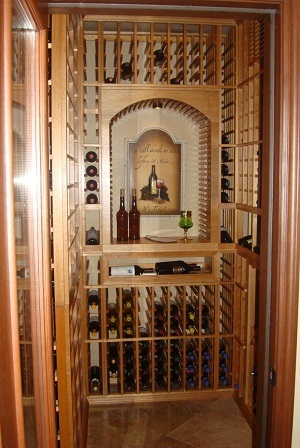

Since our goal was to maximize the available space in this tiny room, our team had to use a variety of wine racking systems. The design included a gorgeous display arch, an elegant diamond bin storage, a stellar high reveal display row, and a set of beautiful standard-sized racks.

Get your own wine cellar design by clicking here!

Wine racks are installed in this small custom cellar.

Click for a bigger image!

Click on the photo for a larger version of the file.

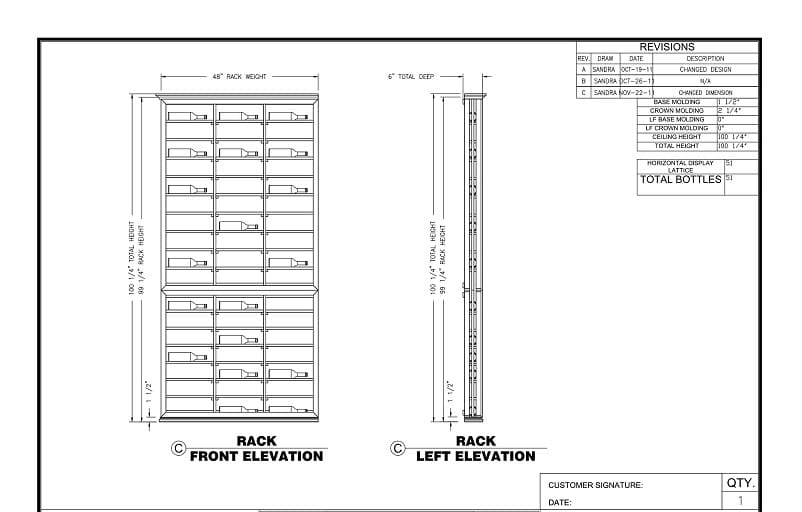

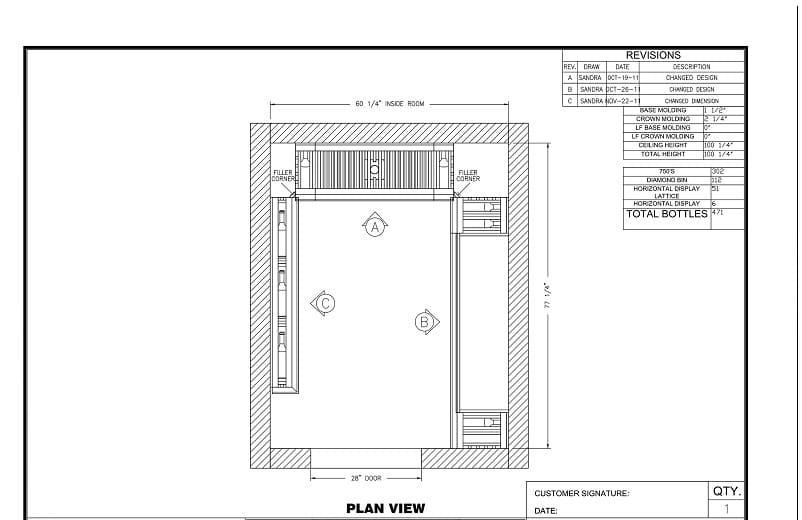

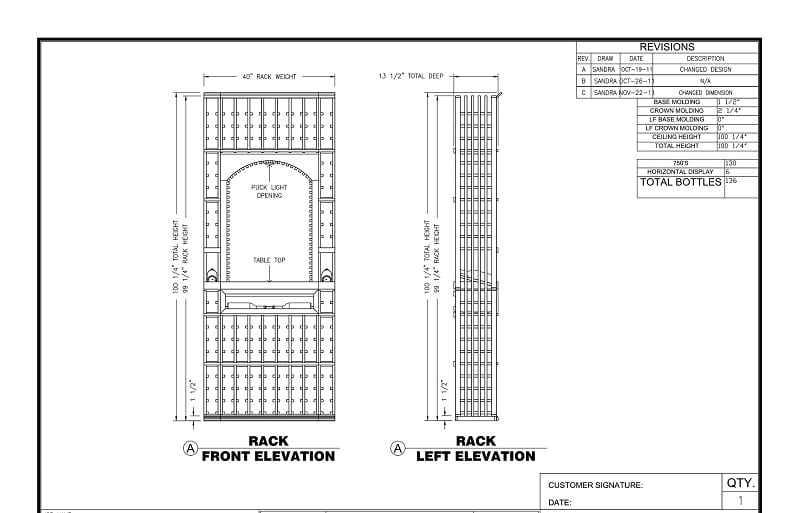

One of the challenges that our builders faced was the fact that the room was only 60 inches wide with an offset door near its left wall. To maximize the storage capacity of the cellar amid this peculiar setup, we installed 6-inch deep, horizontal, label-forward wine racks on the left wall. This racking system can accommodate both standard and large-format bottles. Since the racks are shallow, they are not obstructing the door and do not impede entry to the wine room. The other wine racks in this residential custom cellar were 13 1/2-inch full depth racks.

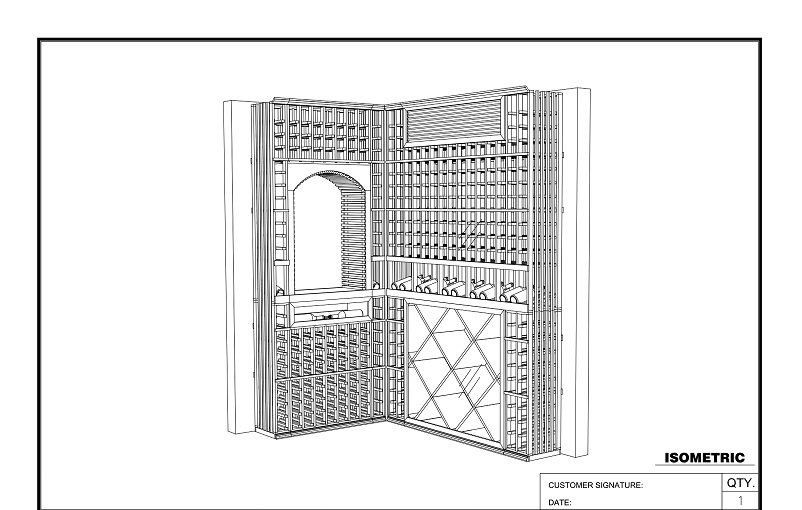

Our team added an arched tasting area with a lovely horizontal display underneath the arch. On either side of the arch, our team installed high reveal rows that tilt bottles at a 15-degree angle, so that their labels can be visible.

FREE wine cellar design!

Get your FREE wine cellar design. Click here!

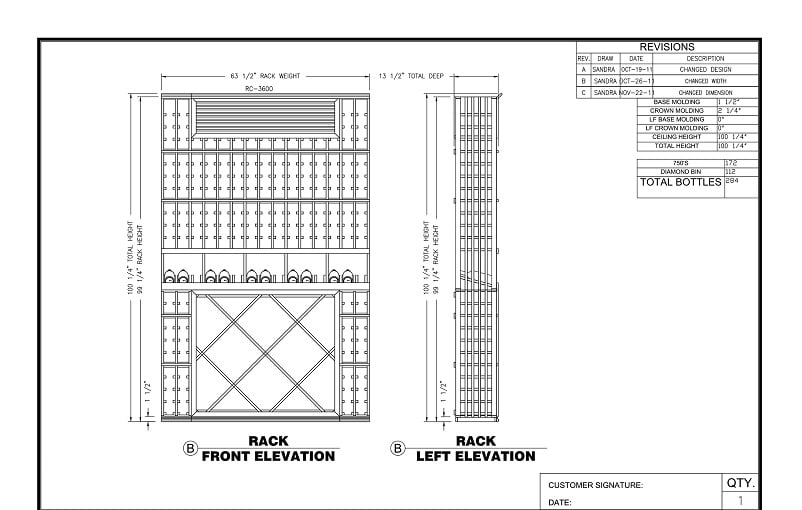

On the right wall of the room, our team installed standard-sized racks with a high reveal display row. Below these racks was a central diamond bin case for storing large wines and irregularly shaped bottles. At the top of this wall, we mounted a wooden louvered grill to conceal the cellar’s cooling unit. The louvered grill was made from the same wood that the racks were built from.

FREE wine cellar design here!

Click on the photo to get your own wine cellar design for FREE!

Larger version of the file here!

Click on the image for a larger view of the photo!


All the wine racks in this Phoenix project were made from Mahogany with a natural clear finish applied.

A Modern Style Wine Cellar Door Installed

The client chose a custom-designed door for her residential wine cellar. We installed a dual-pane glass door with a chestnut-stained Mahogany frame. The style of this door made the contents of the tiny cellar room viewable from the outside.

Robust Refrigeration Unit Mounted

The cooling equipment installed in this custom wine cellar was a RM 3600 split type refrigeration system from US Cellar Systems. The evaporator was mounted in the wine cellar behind a louvered grill, while the condenser was placed in a separate room.

Contact us for a FREE wine cellar design!

Have your dream wine cellar designed by an expert! Click here!

For more information about our services, you may call us today at +1(480) 409-1114!
